Ar,He,H2 Analyzer
This gas analyzer measures the concentration of gases by utilizing the difference in thermal conductivities between two gas components. It consists of a detector with a reference chamber and a measuring chamber, each containing a thin platinum wire. The reference chamber is filled with reference gas, while the sample gas flows through the measuring chamber. Each platinum wire forms a bridge circuit with an external fixed resistor and is heated by a constant current. When there is a change in the concentration of the component being measured, the thermal conductivity of the sample gas changes, affecting the temperature of the platinum wire in the measuring chamber. This change in temperature is then converted into a change in electric resistance, allowing for the calculation of the concentration of the measured gas.

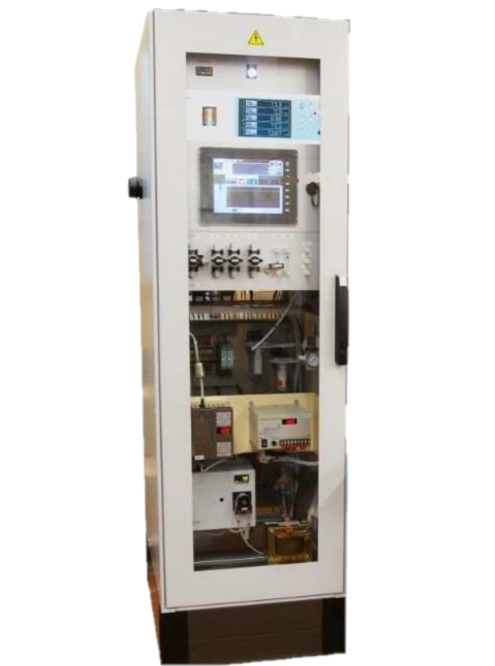

Continuous Emission Monitoring System (CEMS)
This gas analyzer measures the concentration of gases by utilizing the difference in thermal conductivities between two gas components. It consists of a detector with a reference chamber and a measuring chamber, each containing a thin platinum wire. The reference chamber is filled with reference gas, while the sample gas flows through the measuring chamber. Each platinum wire forms a bridge circuit with an external fixed resistor and is heated by a constant current. When there is a change in the concentration of the component being measured, the thermal conductivity of the sample gas changes, affecting the temperature of the platinum wire in the measuring chamber. This change in temperature is then converted into a change in electric resistance, allowing for the calculation of the concentration of the measured gas.
Moistutre meter
This product is Shaw make Moisture Meter, which is an on-line hygrometer designed to measure dewpoint in process gases and compressed air. It is housed in a panel-mounted enclosure that provides protection to IP54 standards. With its highly accurate and repeatable Shaw sensor, along with advanced digital electronics, this instrument is ideal for a wide range of applications where precise measurement, control, and monitoring are crucial. Each sensor is calibrated to ensure an overall system accuracy of better than ±2 °C (±3.6 °F) dewpoint and comes with a calibration certificate traceable to international standards. The Superdew 3 can be easily configured by the user to display measurements in °C, °F, ppm(v), or lbs/MMscf on a clear five-character LED display. Additionally, the instrument offers two fully programmable alarm relays that can be set independently across the full operating range of the sensor. The set points for these alarms can be viewed and adjusted using the front panel keypad. Furthermore, a standard isolated 4 - 20 mA analogue output is provided, with the output range configurable to match the sensor's range. The system allows for the Superdew 3 instrument to be located over 1000 meters away from the sensor. The Superdew Dewpoint Hygrometer Package is fully customized according to the customer's specifications and includes the Superdew analyzer, Shaw sensor, sensor holder, and two meters of sensor cable.

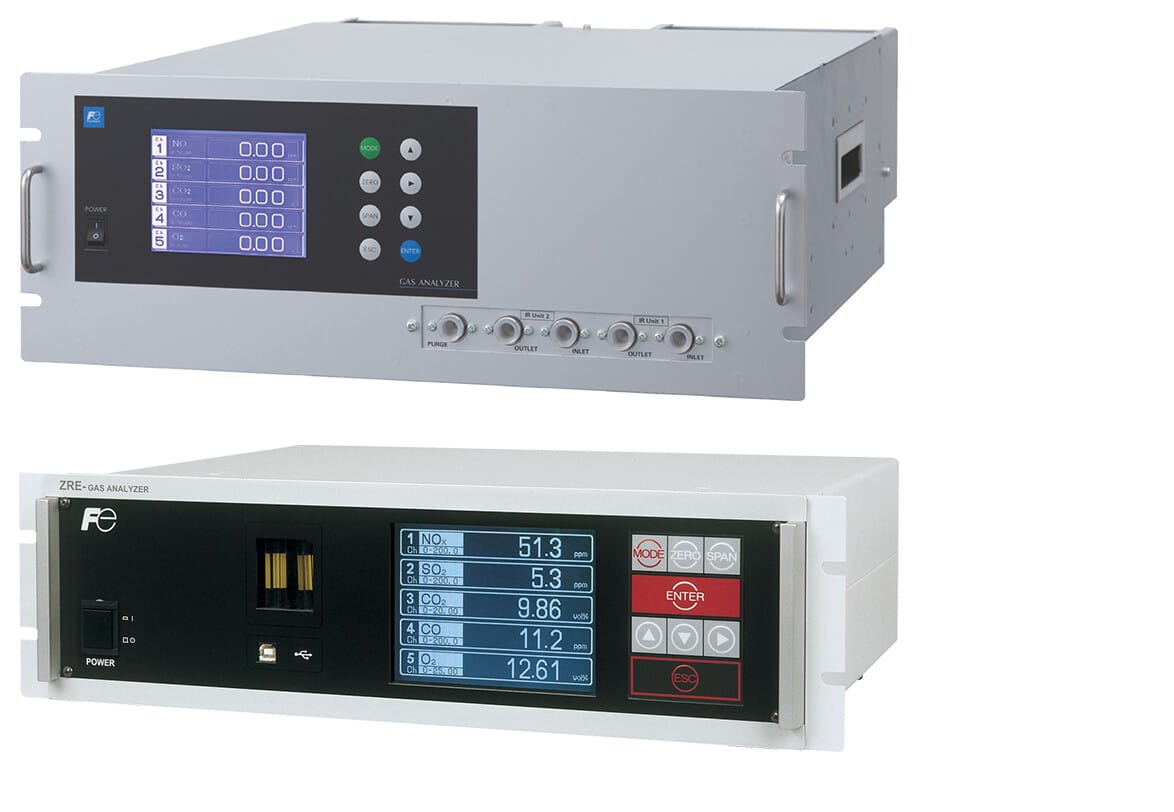

Multicomponent Gas Analyzer
A multicomponent gas analyzer is an advanced instrument utilized for the simultaneous measurement of multiple gas concentrations in a mixture. These analyzers play a crucial role in diverse sectors such as environmental monitoring, industrial process control, medical diagnostics, and research applications. The capability to detect and quantify numerous gases simultaneously enables a comprehensive comprehension of the gaseous environment under study or regulation.

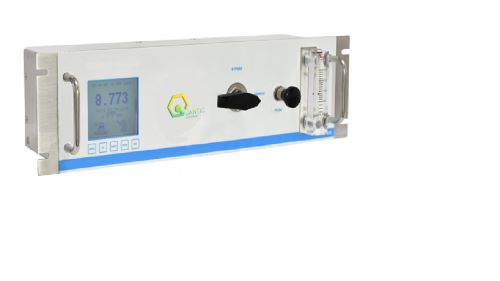

Oxygen Analyzer
Oxygen analyzers measure the level of oxygen found in a given environment, improving both safety and efficiency in a wide range of industries. These important tools may either measure stack gas or inert gas.Oxygen (O2) gas analysis is key to safety, efficiency, and control in a vast range of industrial processes.

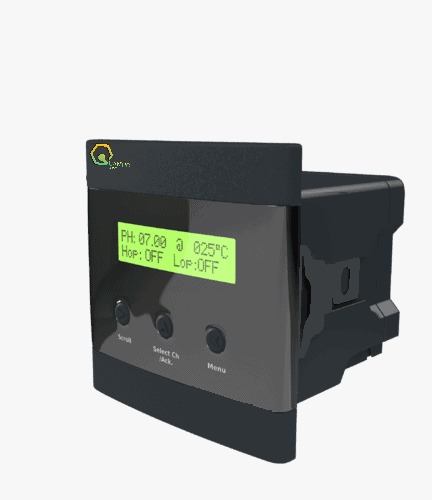

pH meter and pH sensor
The pH meter is used to measure the concentration of hydrogen ion in a solutionto convert it into a corresponding usable output signal.The measurement unit digital represents in display unit.The double liquid junction is adopted to reduce the pollution of the reference liquid.The long-distance reference diffusion path greatly prolongs the service life of the electrode in harsh environment and is convenient for maintenance.Current output 4-20mA is available Compact design ,very accurate & reliable,High grade raw material used, long life.
Industries Served
Power Plant
Steel Plant
Cement Industry
Petrochemicals Refinery
Fertilizer Industry
Chemical Industry
Precision
precision redifined
where accuracy
meets excllence
Integrty
Integrity illuminated
Guiding every decision
which honestly
Satisfaction
precision redifined
where accuracy
meets excllence
Reliability
precision redifined
where accuracy
meets excllence
About us
Quantic Control System is a trusted name in the world of instrumentation with a legacy of excellence we’ve been at a forefront of the industry offering cutting edge technology and unmatched expertise .At Quantic Control System we specialize in a delivering precision instrumentational solution tailored to your specific needs to accuracy reliability and innovation, we provide advanced tools for the analysis of gases and liquid across various industries.
